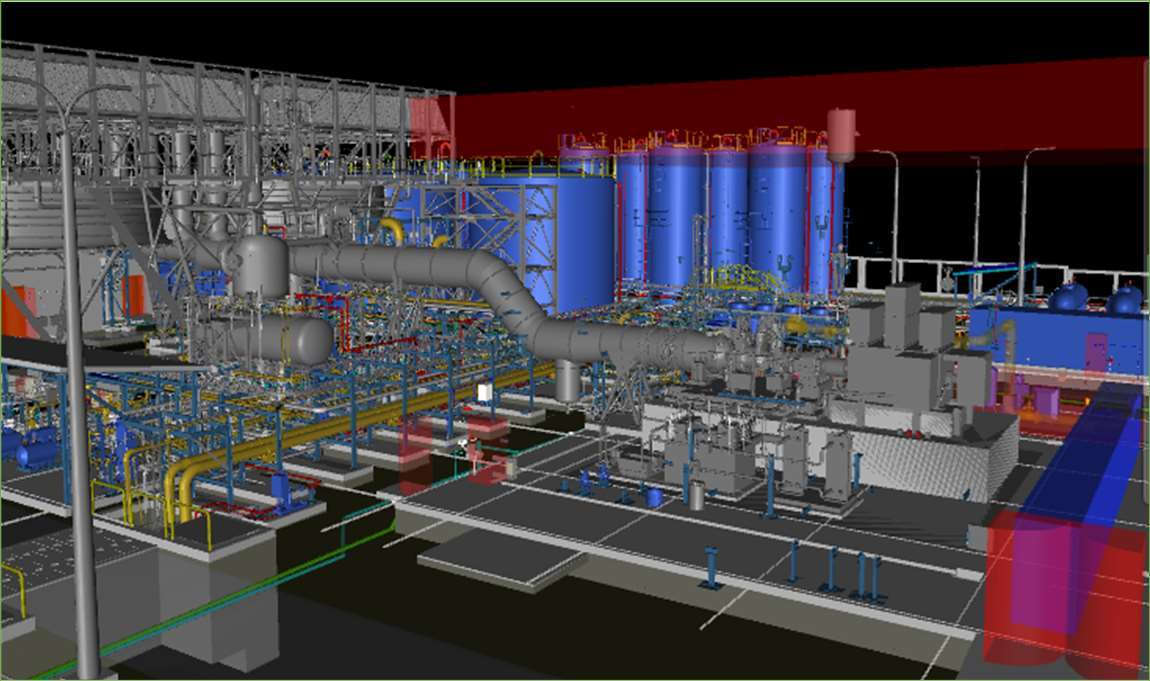

Steam Turbine & Heat Recovery System

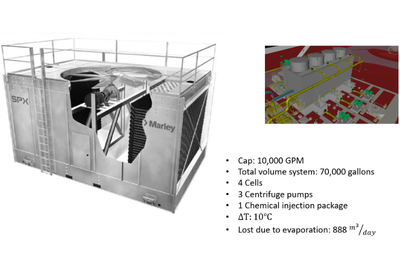

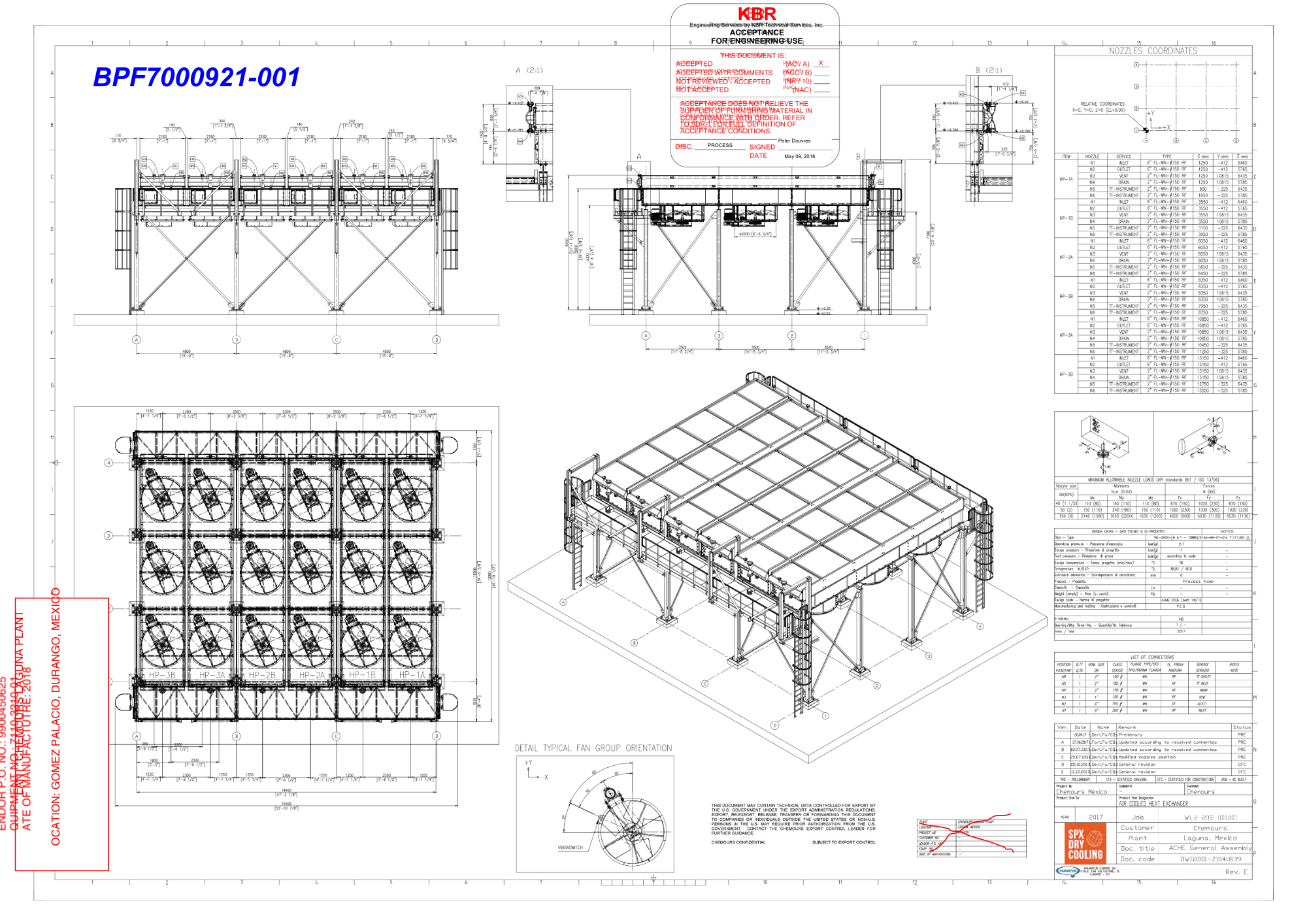

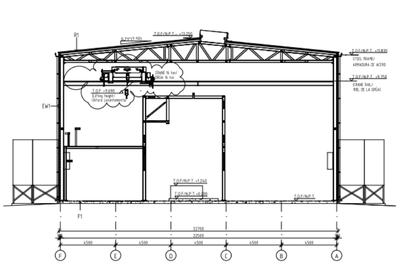

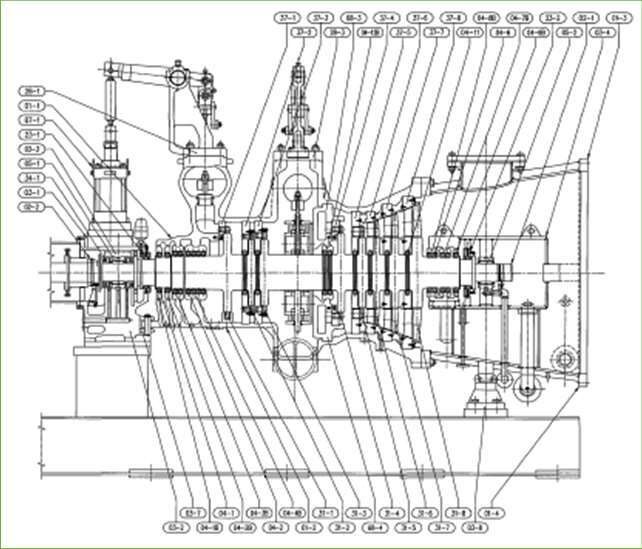

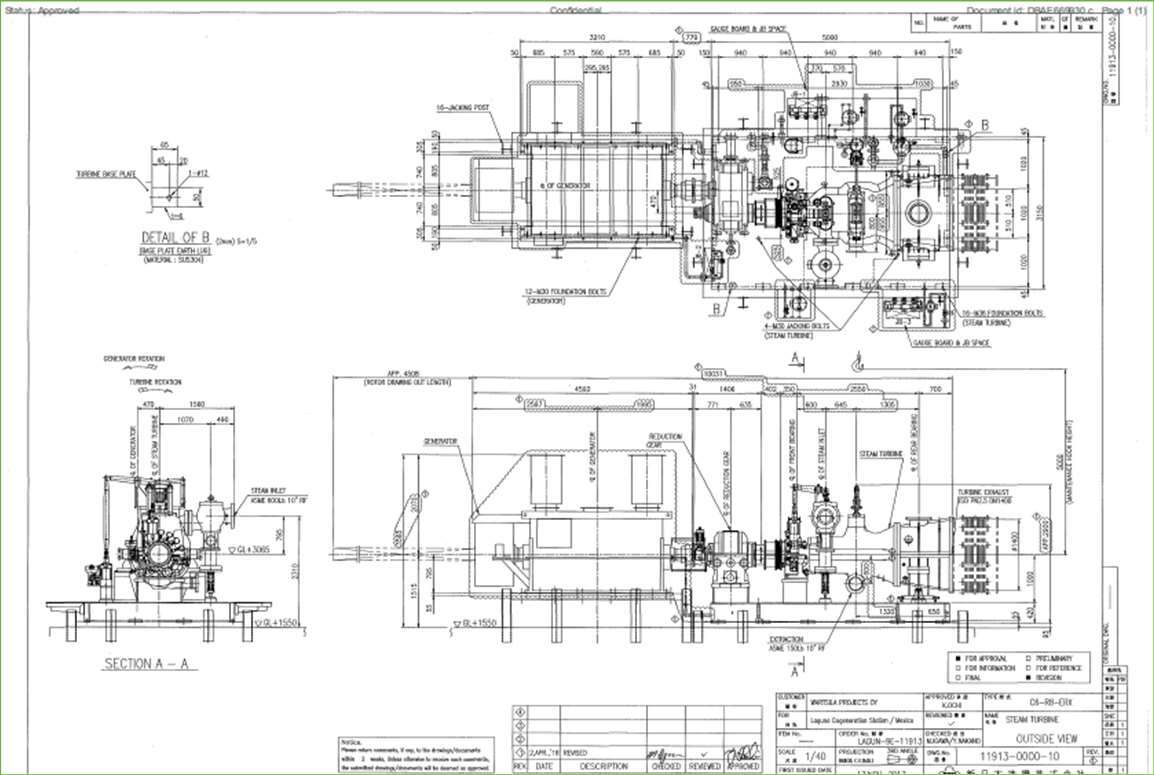

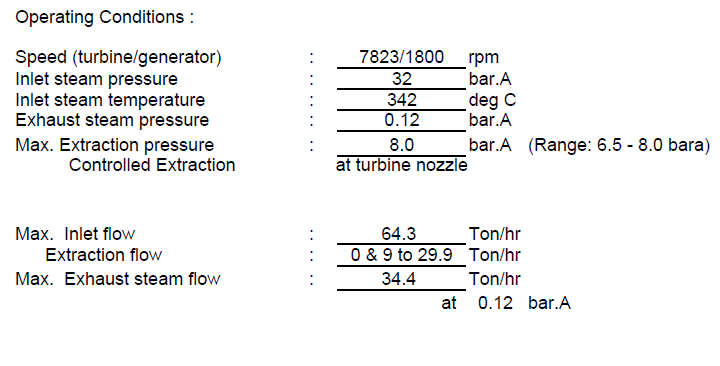

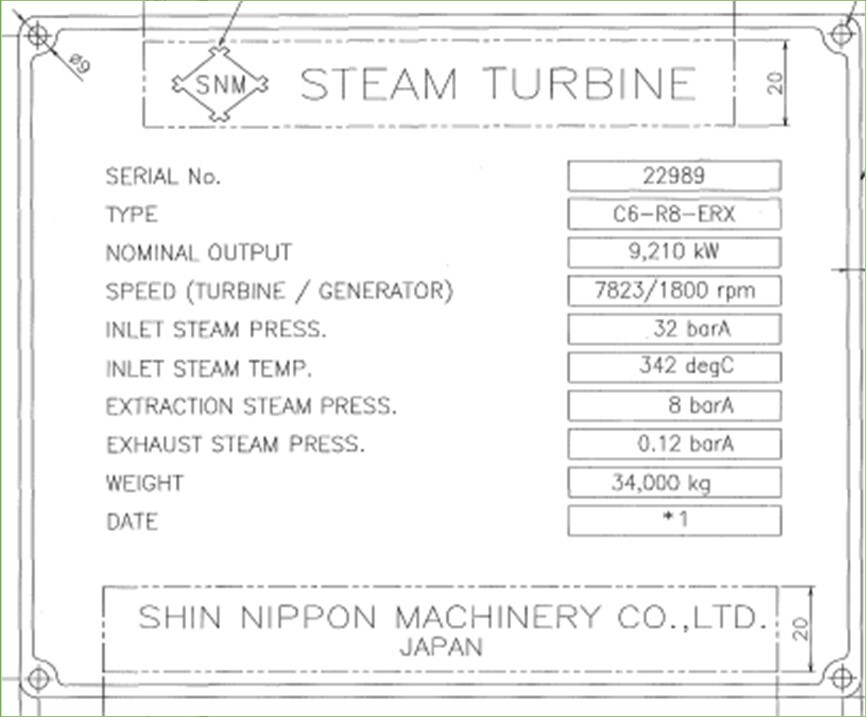

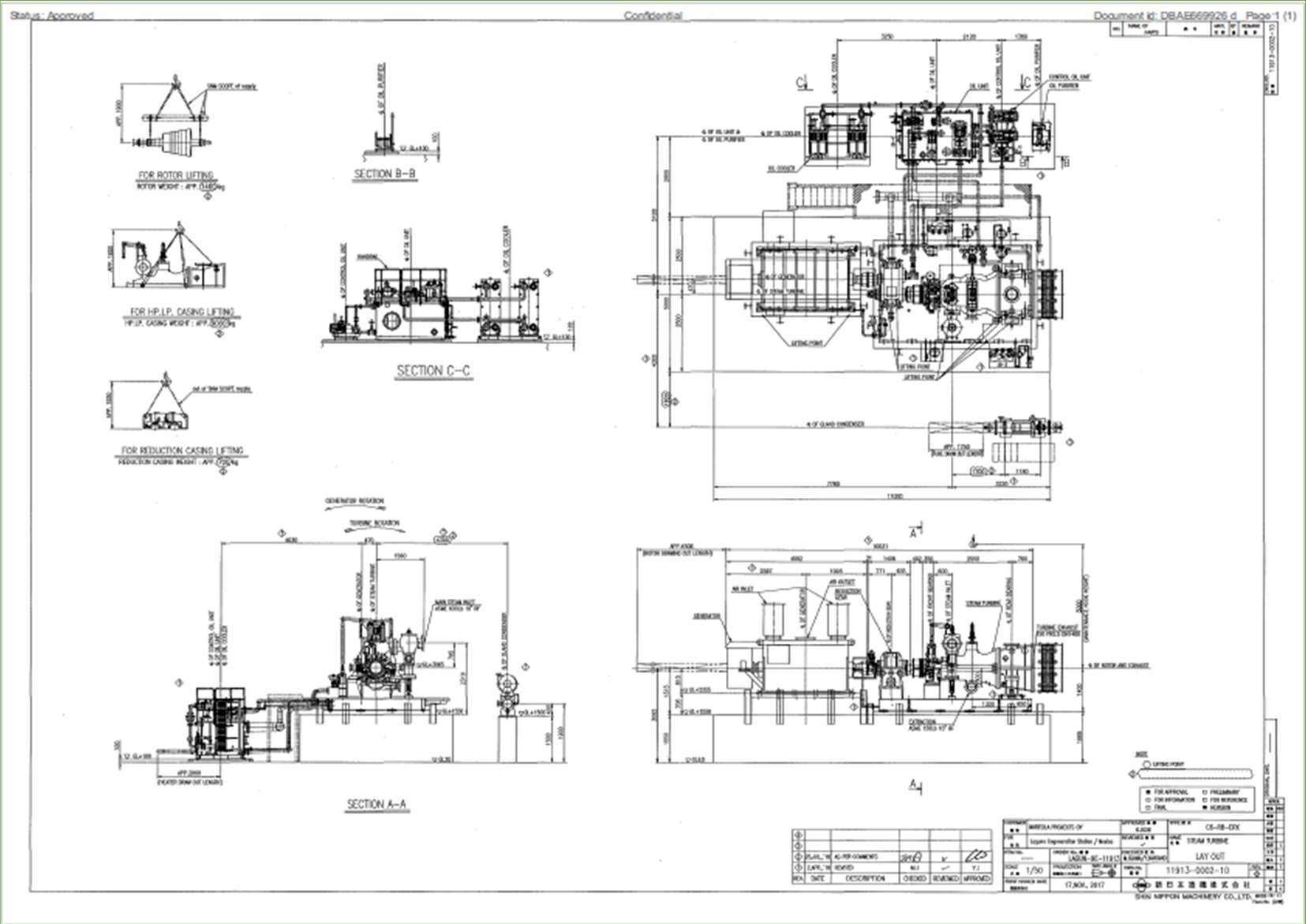

Featured asset package including a Shin Nippon Machinery 9.210 MW horizontal impulse multistage steam turbine with axial flow condensing extraction and gear, paired with a complete Wartsila heat recovery steam generator system. Also includes Wartsila air cooled condenser, Alfa Laval steam header SH 200, Alfa Laval AV-6N vertical exhaust gas boilers, Marley cooling towers, SPX forced air cooler, and steel building. Well maintained power generation solution available now for redeployment.

Heat Recovery System

This system produces superheated steam from the system's waste heat.

HSRG - Wartsila Heat Recovery Steam Generator System
ACC - Wartsila Air Cooled Condenser System

The HRSG has 2 main components:

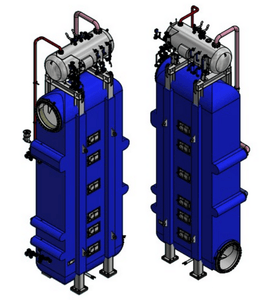

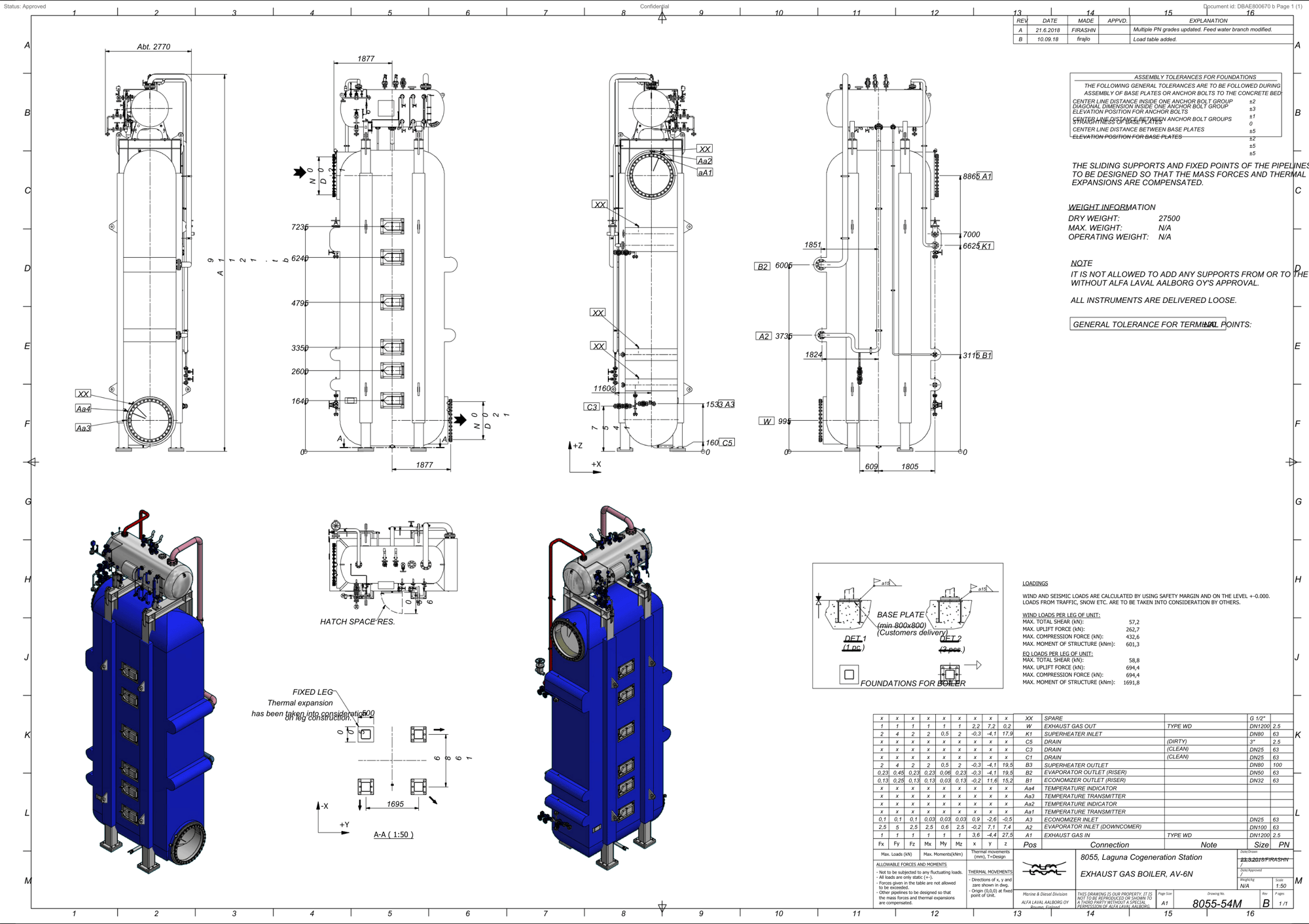

Alfa Laval Vertical Heat Exhaust Gas Boilers, Model AV-6N
- Exhaust Gas Boilers (RCC 011, RCC 021)
- Steam Drums (RCA 011, RCA 021)
- Exhaust Gas Damper (NHA 011, NHA 021)

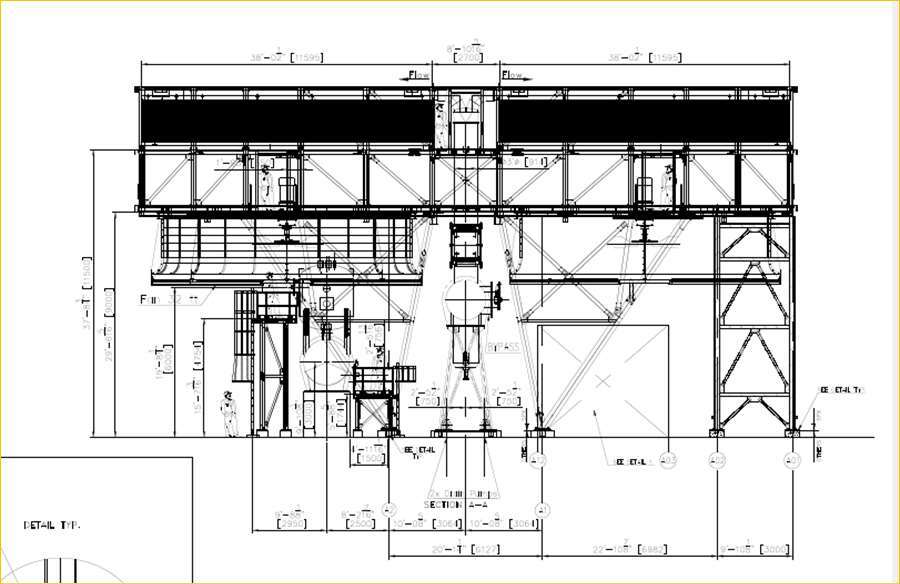

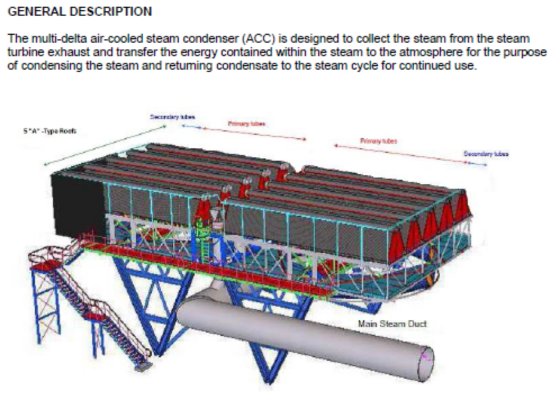

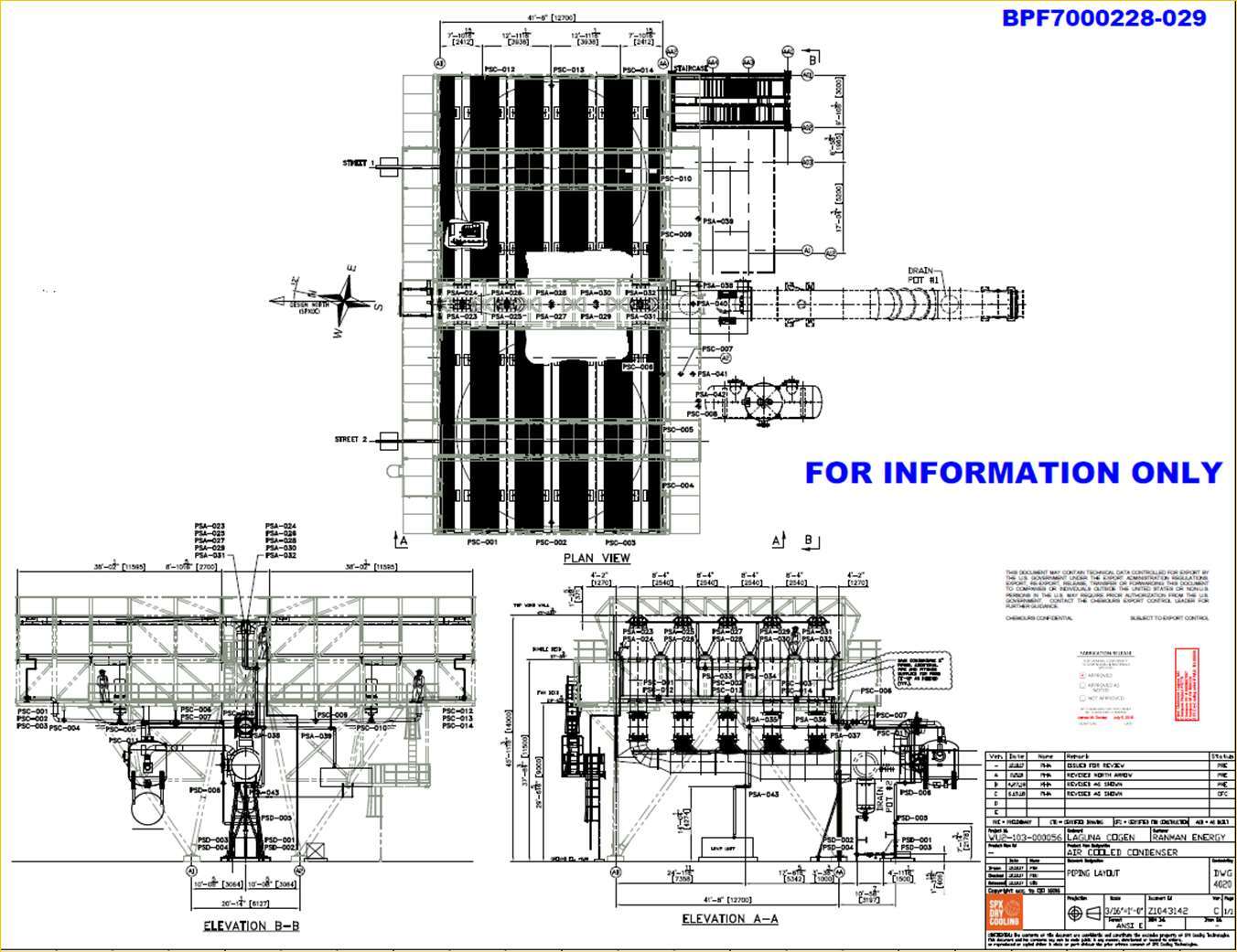

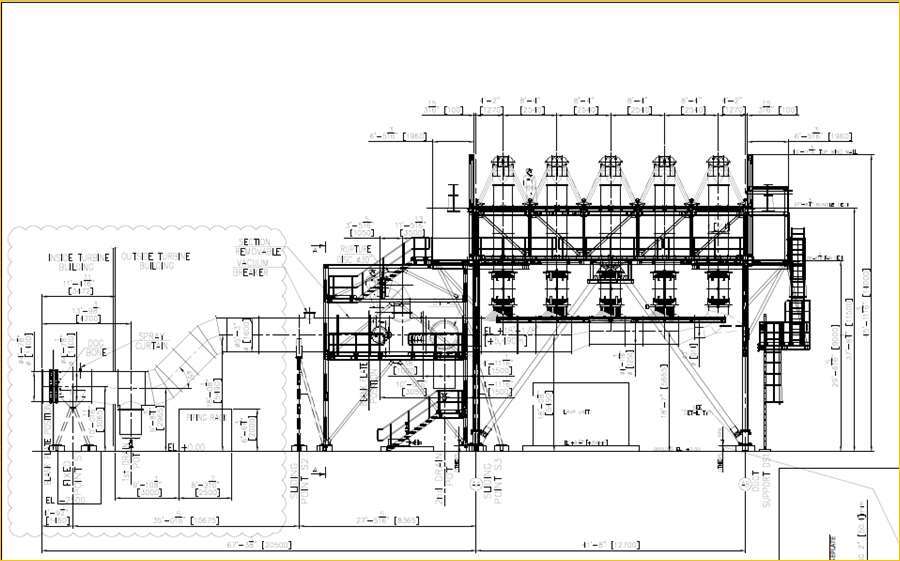

Wartsila R1 Air Cooled Condenser System
- Multi-delta air-cooled steam condenser (ACC) designed to collect steam from turbine exhaust and transfer the energy contained in the steam to the atmosphere
  - Steel Structure
  - Steam System
  - Cooling System
  - Condensate System
  - Air Extraction System
