Available for Immediate Sale

New, Unused Ammonia System

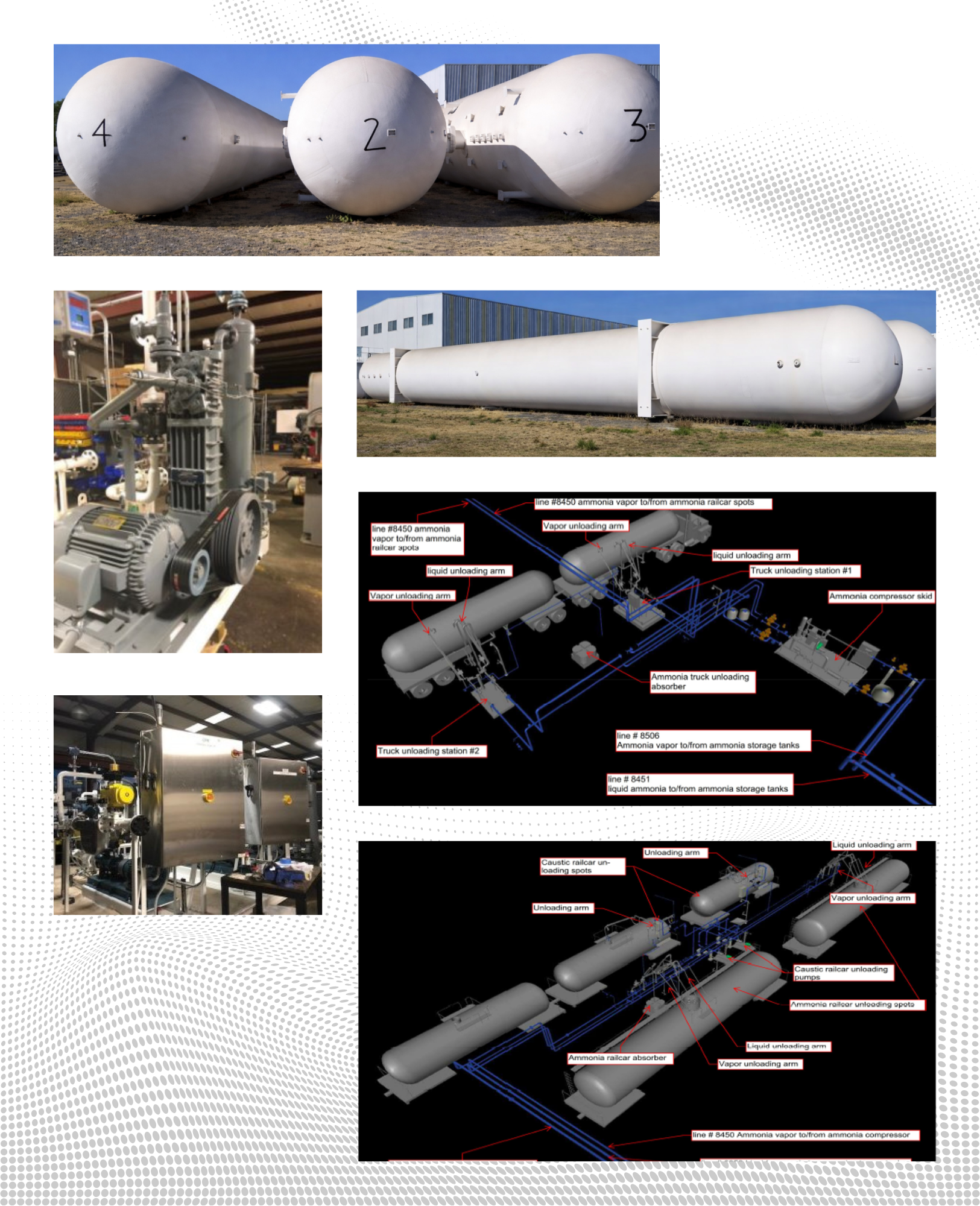

A complete, never-commissioned anhydrous ammonia handling system — (4) 120,000-gallon storage bullets, compressor skid, dual-pump skid, and full railcar & truck unloading stations.

Request Information - Ammonia System
bullets

Featuring

(4) Ammonia Bullets
120,000 gal | Horizontal
Compressor Skid
Corken | 50 HP
Pump Skid
(2) ROTH Turbine Pumps
Railcar & Truck Unloading
Arms | Absorbers | Piping
bullets (1)

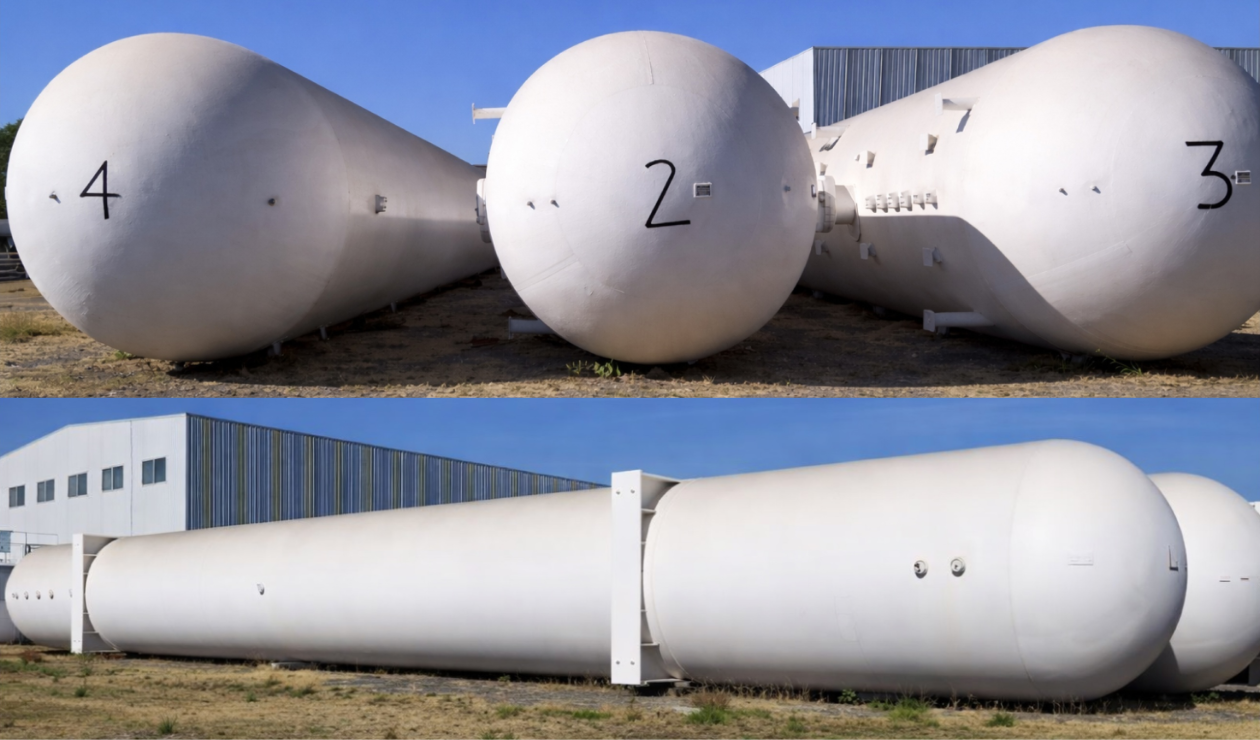

(4) Ammonia Bullets

  • CAPACITY: 120,000 gal / 454.2 m³
  • POSITION: Horizontal
  • DIAMETER: 12ft / 3.7m
  • LENGTH: 147ft / 44.8m
  • WALL THICKNESS: 1¼"gal
  • CORROSION ALLOW.: 1/8”
  • DESIGN PRESS.: 300 psig / 21.1kg/cm³
  • DESIGN TEMP: 302 °C
  • OPERATING PRESS.: 125 psig / 8.8kg/cm³
  • OPREATING TEMP: 23 °C
  • INERTIZATION: ~6.5 psi
  • SERVICE: Ammonia / ind. gas

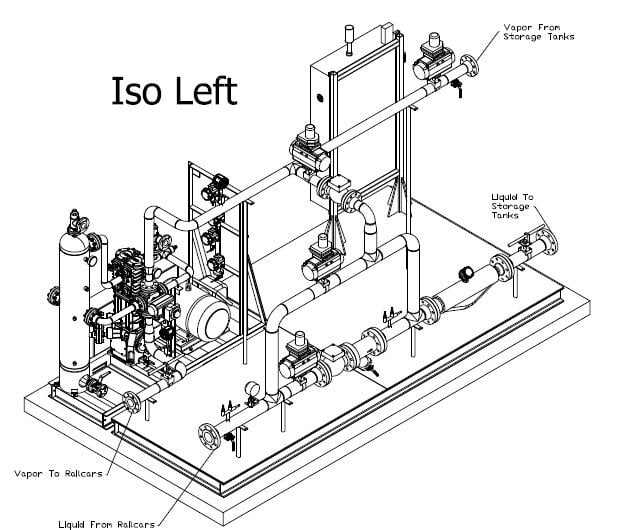

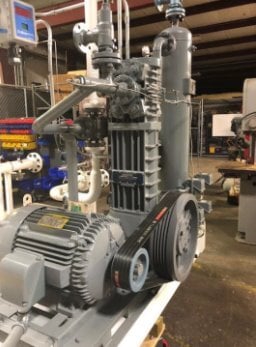

Compressor Skid

  • EQUIPMENT: Ammonia compressor
  • MANUFACTURER: Corken
  • MODEL: FT891HM4FBBNSNN-109F · 50 HP VFD-compatible motor
  • TYPE: Two-stage bare compressor
  • MAX CAPACITY: 450 gpm @ 400 psi
3-2
9-1
5

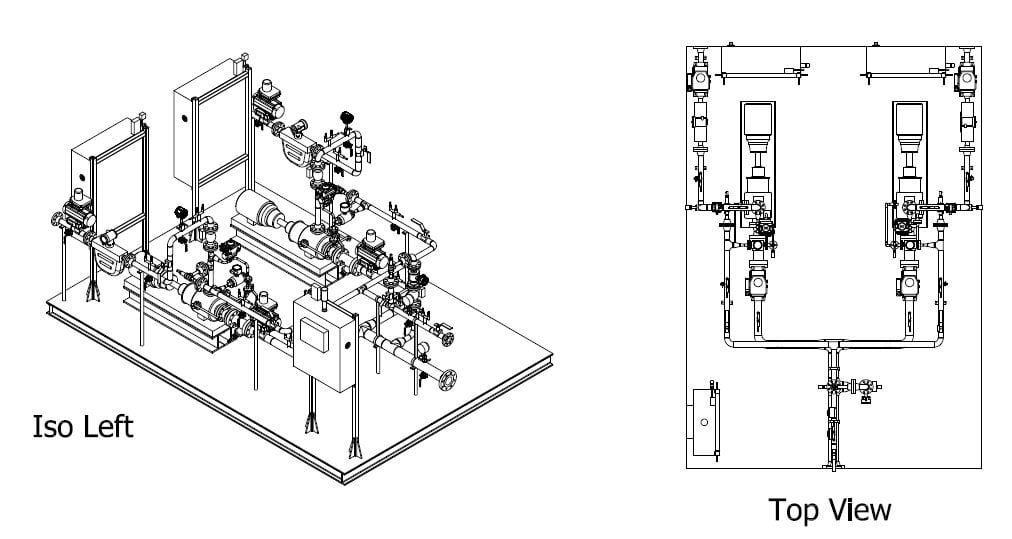

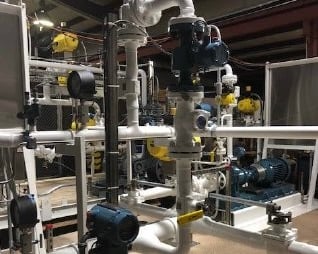

Pump Skid

  • EQUIPMENT: (2) turbine pumps
  • MANUFACTURER: ROTH
  • MODEL: MD5256SA
  • RATING: 42.5 GPM / 203 psig · 3500 RPM · 460 V · 3 PH
  • MOTOR: 20 HP severe duty · 256TC · Class 1 Div 2, Group C&D
7 2
6 2

Unloading Stations

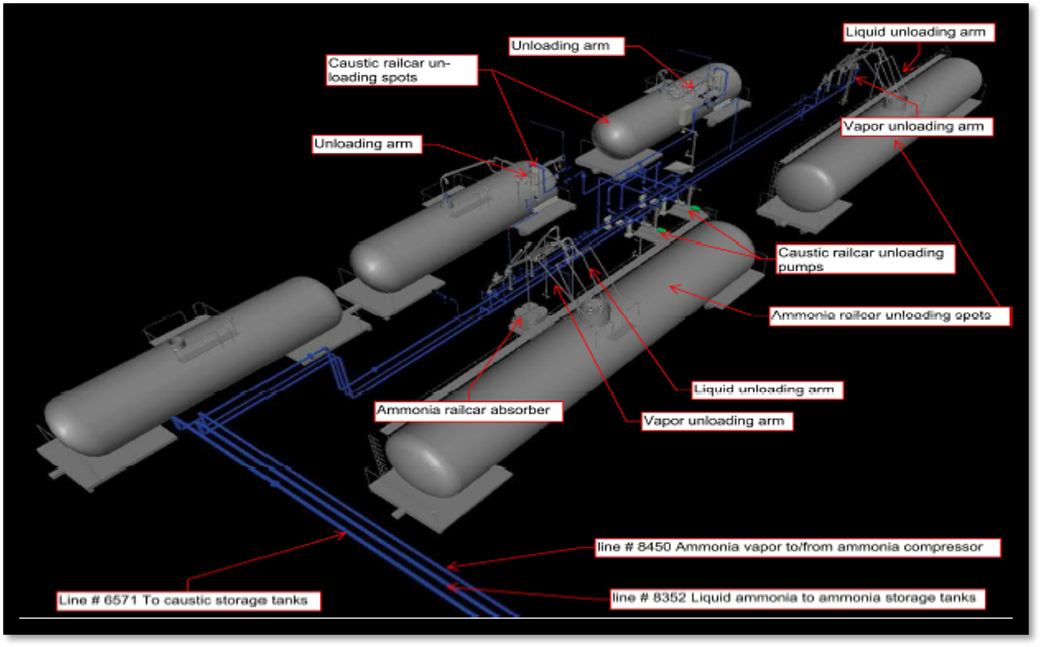

  • RAILCAR SPOT: Liquid & vapor unloading arms · ammonia railcar absorber · caustic railcar unloading pumps

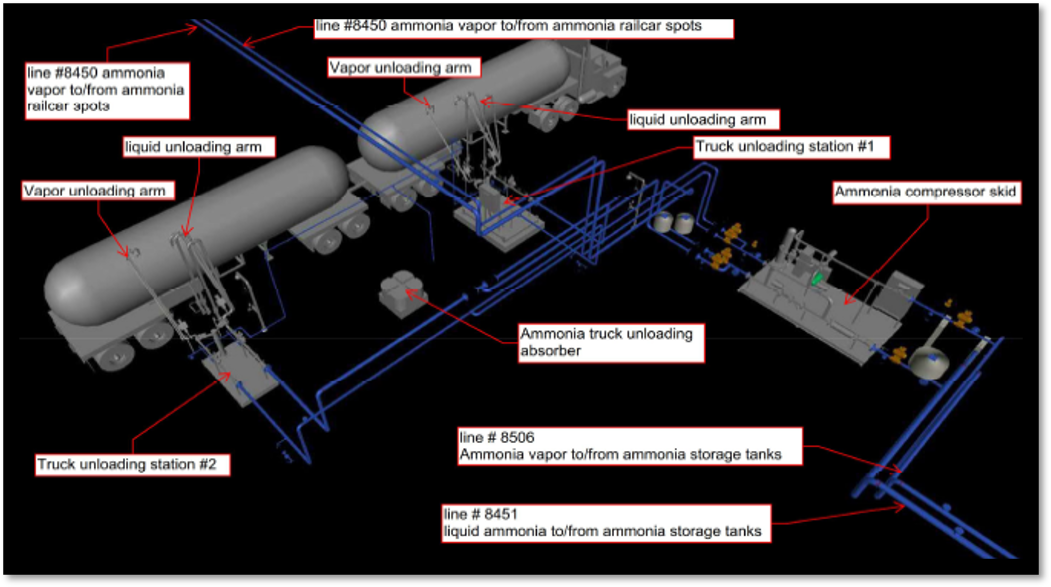

  • TRUCK SPOT: (2) truck unloading stations · liquid & vapor arms · ammonia truck unloading absorber
  • RECOVERY: Snyder 120-gallon vapor recovery absorbers
  • PIPING: Dedicated liquid & vapor lines to/from storage
Unknown-6
4
